Fumetractor with LED Light

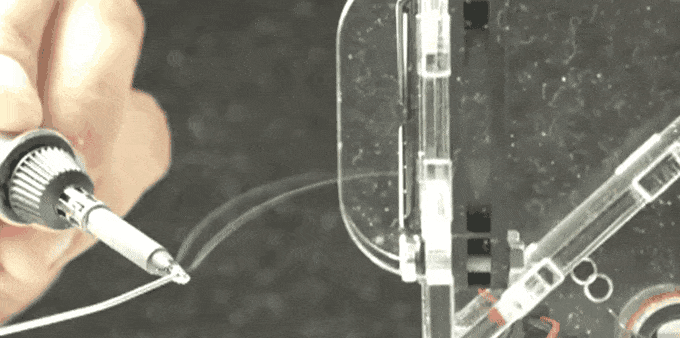

The soldering fume is sucked in by a 60 mm fan and released upwards through an easily replaceable activated carbon filter.

All SMD components are already assembled; the user must assemble the rest.

Features

• Small, compact design
• Quiet operation
• Enhanced LED lighting
• Easy to change the activated carbon filter
• Dimensions: 130 x 83 x 74mm

1-button usability

• Short press: turn the fan on or off
• Longer press (>0,5 s): turn the fan and the LED light on
• Extra long press (>1 s): turn everything on and change the brightness of LED-light

Included in the kit:

• 1 x Board (all SMD parts pre-assembled, tested, with firmware, depending on variant)
• 1 x Fan (60 mm, >60.000 h)
• 1 x Fan guard grille
• 1 x Plug/socket for fan
• 1 x Short-travel pushbutton, angled
• 1 x LED light kit
• 4 x M4 screws (fan mounting)
• 4 x Nuts M4 + fuse
• 8 x Screws M3 (housing)
• 8 x Square nuts M3
• 2 x Activated carbon filter

For more information, please visit the eHajo Dokuwiki.
