Cytron Maker Uno
€14.95
In stock
SKU
18634

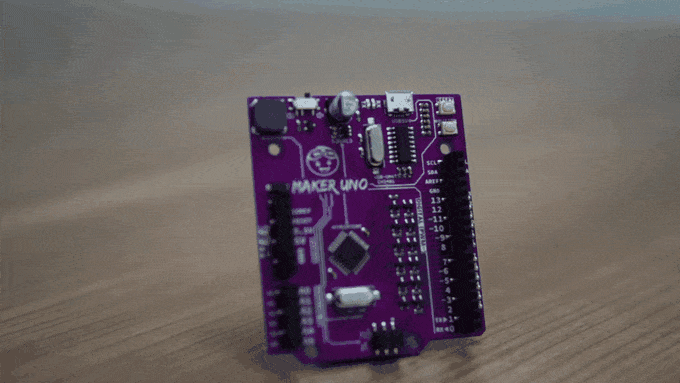

Maker Uno is a redesign of the Uno board by Cytron. It has new novice-friendly features to make the use of the board more accessible for people without extended coding nor electrical knowledge. Cytron's goal was to introduce students to the world of electronics by making an affordable and easy-to-use board, and they succeeded with this incredible board.
Features
- Piezo Buzzer: Acts as a simple audio output
- Micro USB Port
- Programmable Button
- 12 x LED: Provides visual output on board
Specifications
| Microcontroller | ATmega328P |
| Programming IDE | Arduino IDE |
| Operating Voltage | 5 V |
| Digital I/O | 20 |
| PWM | 6 |
| Analog Input | 6 (10-bit) |
| UART | 1 |
| SPI | 1 |
| I2C | 1 |
| External Interrupt | 2 |
| Flash Memory | 32 KB |
| SRAM | 2 KB |
| EEPROM / Data Flash | 1 KB |
| Clock Speed | 16 MHz |
| DC Current I/O Pin | 20 mA |
| Power Supply | USB only |
| DC Current for 5 V | USB Source |
| DC Current for 3.3 V | 500 mA |
| USB to Serial Chip | CH340G |
| Programmable LED | 12 at digital Pin 2 to 13 |
| Programmable Push Button | 1 at digital Pin 2 |
| Piezo Buzzer | 1 at digital Pin 8 |

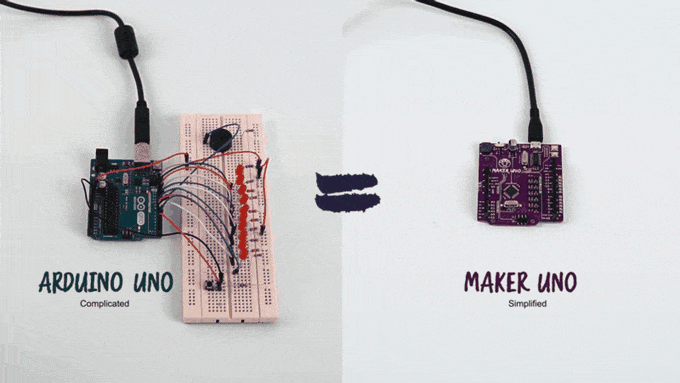

Arduino vs Maker Uno
| SKU | 18634 |
|---|---|
| EAN | 38512318 |
| Manufacturer | Cytron |
